A1 Voltage & Current Sensor

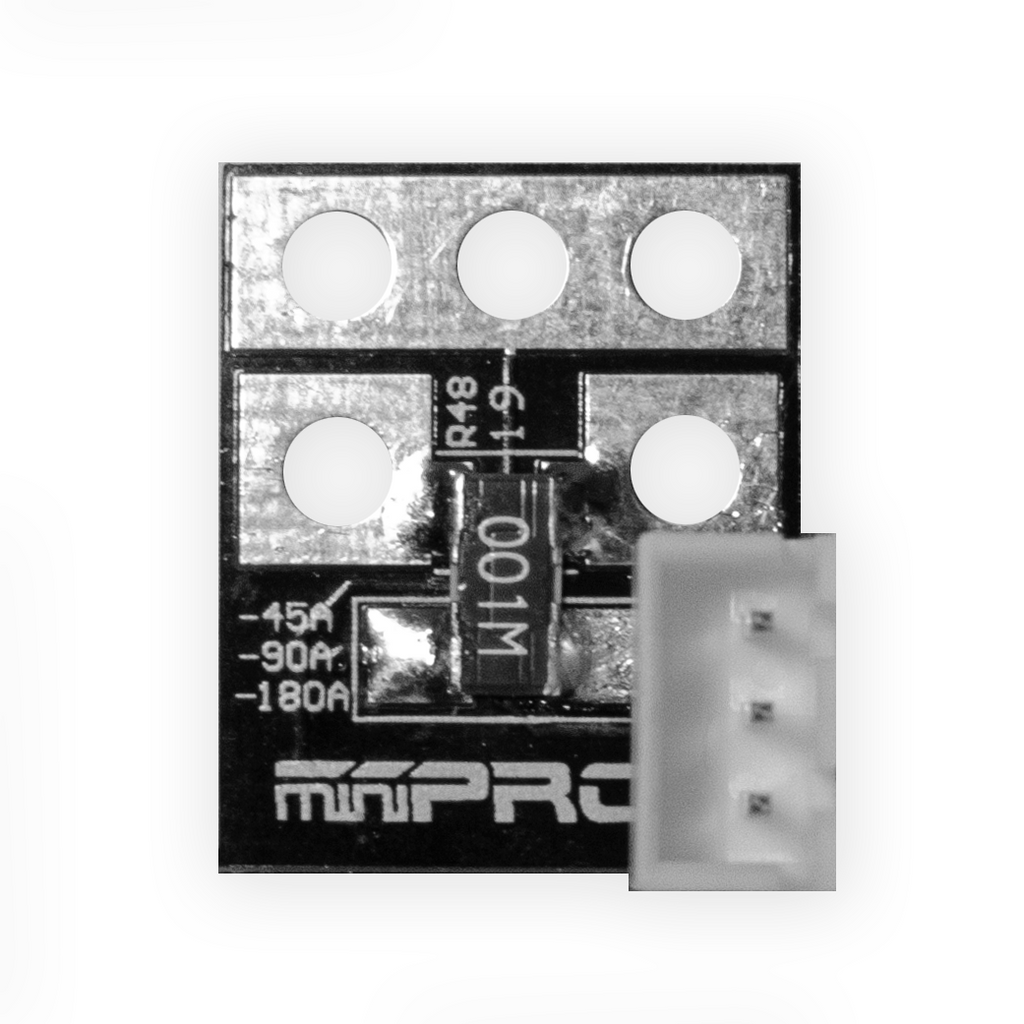

This is a miniPRO® voltage and current sensor board. DC current is determined by measuring a voltage drop across a pair of parallel shunt resistors, then converted to a final analog voltage output.

Sensor Specification:


Package Content:

• (1) Selected Voltage and Current Sensor
• (2) 12 awg wires - 200mm (soldering required)

Note: 3 pins sensor cable not included.

Downloads:

• miniPRO® A1 Connection Guide
